Enables Wi-Fi 6E (WLAN 802.11ax) / Wi-Fi 7 (WLAN 802.11be) / Wi-Fi 8 (WLAN 802.11bn) &

5G FR1 testing

The CMP180 enables Wi-Fi 6E (WLAN 802.11ax)/Wi-Fi 7 (WLAN 802.11be)/ Wi-Fi 8 (WLAN 802.11bn)

and 5G FR1 measurements with a frequency range up to 8 GHz and a bandwidth of up to 500 MHz

and high output power.

Production testing for Wi-Fi® / NR FR1 / 7.125 GHz

Cellular device testing

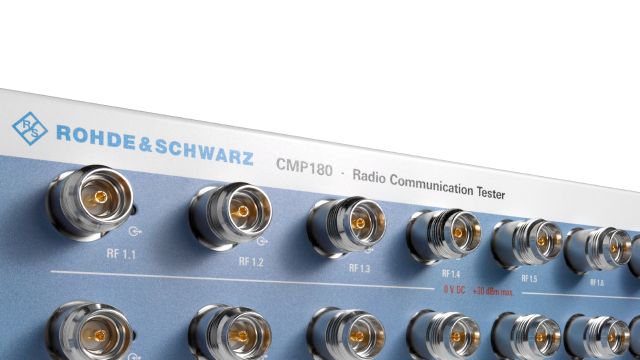

The R&S®CMP180 radio communication is the next generation R&D and production non-signaling test platform for Wi-Fi 6E, Wi-Fi 7, 5G FR1 and many more technologies.

Test engineers can use the instrument throughout the entire development phase, from engineering validation tests, design validation tests, and production validation tests, to mass production.

The CMP180 radio communication tester is a future-proof, non-signaling testing solution for wireless devices in research and development, validation and production. Together with advanced frequency, bandwidth and RF capabilities, it can be used to test new wireless technologies such as Wi-Fi 6E, Wi-Fi 7, Wi-Fi 8, 5G NR FR1 and many more. Twice as many analyzers (2xVSA), generators (2xVSG) and RF ports (2x8) allow technologies and devices to be measured simultaneously in a VSA/VSG single-box tester. The R&S®CMPflexx system can have four analyzers (4x VSA), four generators (4x VSG) and four times eight RF ports (4x8).
